LF-23

LF-23

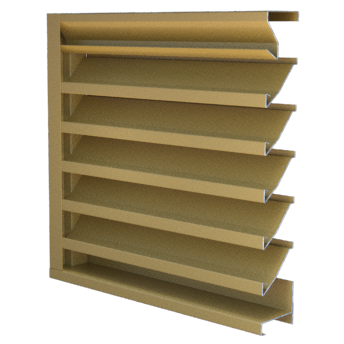

Fixed, Drainable Louver

4 "

Louver Depth

54.1 %

Free Area %

982 fpm

Water Penetration

0.125 in w.g.

Pressure Drop

Calculate my
Free Area

Nominal Width

in

Nominal Height

in

-

Free Area

-

Free Area

Find my
Louver Size

Nominal Dimension (in)

W

System Flow (cfm)

cfm

-

Min Nominal Height

TECHNICAL SPECIFICATION

Louver Depth
4 "
Description
Fixed, Drainable Louver
Free Area %
54.1 %
Free Area Sqft
8.66 sqft
Water Penetration
982 fpm
Pressure Drop
0.125 in w.g.
Pressure Drop Rating
Best
Certifications
AMCA Air
AMCA Water
Blade Angle
37 °
Blade Material
20 Ga. Galvanized Steel
Frame Material
16 Gauge Galvanized Steel
Louver Material
Fabricated Steel
Material
Galvanized Steel
Blade Orientation
Horizontal
Blade Spacing
3 "
Min Width Size
12 "
Min Height Size
12 "
Max Width Size
96 "
Max Height Size
96 "
Mullion
Exposed
Hidden
Screen Options
Bird Screen
Insect Screen
Sight Proof
No

Data above is based on AMCA test sample of 48"x48", tested in accordance with AMCA 511. Data is based on lab measurements, which can vary from calculated free area data.

TECHNICAL DOCUMENTS

Submittal
CAD Drawing
Installation instructions
Brochure
Color Chart
Warranty

Proudly Made in the USA
