BDE

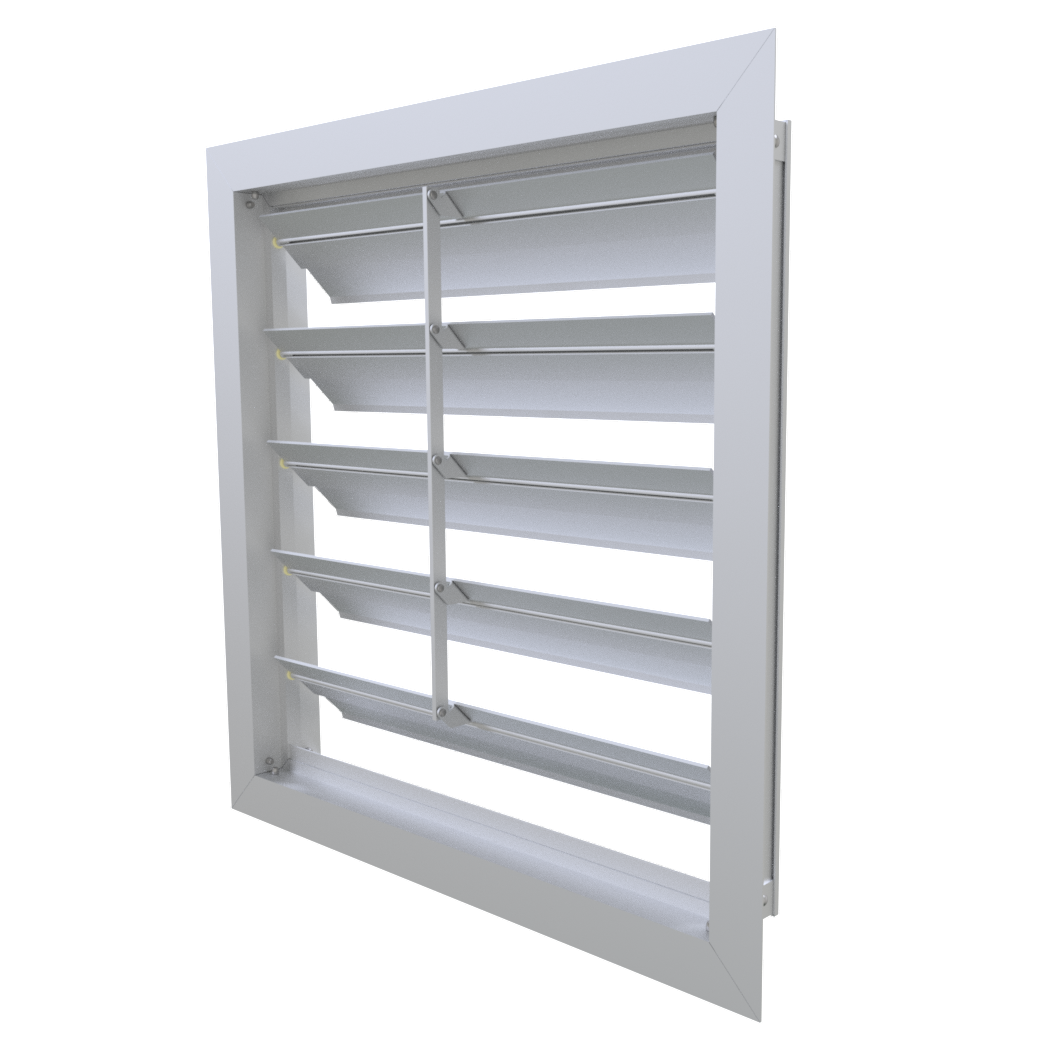

All Extruded Gravity Operated Backdraft, Single Thickness (Vertical or Horizontal Mount)

2800 fpm

Max Face Vel

3"

Damper Depth

6 in w.g.

Max Pressure

200°F

Max Temp.

Gravity Operated

Shutter Action

Available! Find a Rep
Technical Specifications
Blade Type
Single Thickness
Certifications
N/A
Max Face Vel
2800 fpm
Damper Depth
3"
Max Pressure
6 in w.g.
Max Temp.
200°F
Damper Material
Aluminum
Shutter Action
Gravity Operated
Width Min Size
6"
Width Max Size
90"
Height Min Size
6"
Height Max Size
96"
Flow Direction

TECHNICAL DOCUMENTS

Submittal
Installation instructions
Brochure
Warranty
